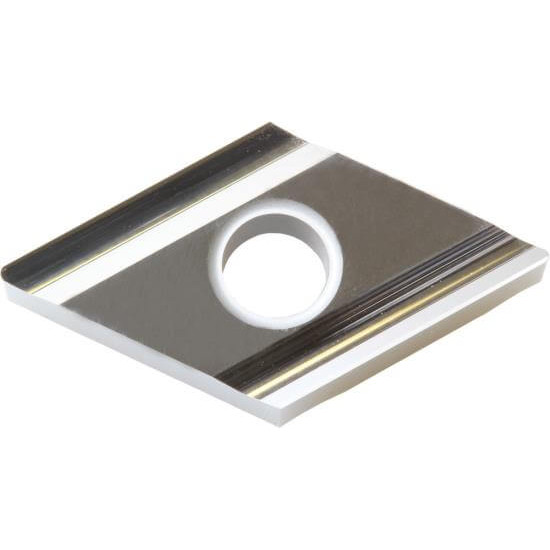

Kyocera DNGG150408L-A3 KW10 TWE04459 Indexable Turning Insert - Boring

Kyocera DNGG150408L-A3 KW10 TWE04459 Indexable Turning Insert - Boring
-40 %
💳 We Accept PayPal & Secure Bank Payments

For your absolute peace of mind, all transactions are processed through and secured by PayPal. Your purchase is fully covered by PayPal Buyer Protection, ensuring secure data encryption and trusted dispute resolution.

安心の決済保護:すべてのお手続きはPayPalを介して安全に暗号化され、バイヤープロテクション(購入者保護)が適用されます。

100%
Satisfaction Guarantee
Kyocera Original Product
Paypal Secure Checkout
🚚
Fast & Secure Shipping
Kyocera DNGG150408L-A3 KW10 TWE04459 Indexable Turning Insert - Boring
$8.22 USD
$13.70 USD
1 or more $8.22 USD
  • Stock: In Stock
  • Model: DNGG
  • Weight: 0.14kg
  • Manufactured: In Japan
  • Ships: Worldwide
  • Item Code: TWE04459
This product has a minimum quantity of 10
✈️ Global Express Delivery

Flat $50 USD Shipping worldwide via DHL Express. Maximize your savings by ordering in bulk packs!

International Shipping Note

Please note that any local customs duties, taxes, or import fees are not included in the checkout price and must be borne by the customer.

How it works: Once your package arrives at your country's customs office, DHL will contact you directly via email, SMS, or phone to guide you through the local clearance and payment process.

DHL secure global delivery. Tracked from our door to yours. Kyotow.com Secured

DNGG432LA3 KW10 Grade Uncoated Carbide, Indexable Turning Insert For Boring, Copying, External Turning

Product Overview

The DNGG150408L-A3 is a premium-grade indexable turning insert from Kyocera Precision Tools, engineered for boring, copying, external turning. Featuring a 55 degree diamond geometry with 4 usable cutting edges, this uncoated carbide insert delivers exceptional surface finish, dimensional accuracy, and extended tool life in demanding CNC turning environments.

Manufactured in Japan from ultra-fine grain tungsten carbide (K10 equivalent), the KW10 substrate offers outstanding hardness and wear resistance for machining non-ferrous metals, cast iron, titanium alloys, and non-metallic materials. The A3 chipbreaker ensures reliable chip control across a wide range of feeds and depths of cut.

ISO Designation Breakdown

ISO Designation Breakdown
ISO CodeDNGG150408L-A3
ANSI CodeDNGG432LA3KW10
Shape SymbolD – 55 Degree Diamond
Relief AngleN (0°)
Tolerance ClassG (Precision Ground)
Fixing & ChipbreakerA3
Size15
Thickness04
Corner Radius08

Engineering Dimensions & Geometry

Engineering Dimensions & Geometry
Inscribed Circle (IC)1/2"
Insert Thickness3/16"
Nose Radius1/32"
Included Angle55°
Shape55 Degree Diamond
Number of Cutting Edges4
HandLeft-Hand

Grade Details – Key Grade Characteristics

Grade Details – Key Grade Characteristics
Grade DesignationKW10
Substrate MaterialFine-grain tungsten carbide (K10 class)
ISO Application GroupK01–K20 (Non-ferrous & non-metals)
CoatingUncoated
Hardness (HV)1,780
Transverse Rupture Strength2.5 GPa
Key PropertiesHigh hardness, excellent wear resistance, superior surface finish capability

Grade Comparison Matrix

GradeISO ClassCoatingBest For
KW10K10UncoatedNon-ferrous metals, cast iron, titanium, mirror finishes
PR930P10–P30PVDSteel & stainless steel general machining
CA530P20–P40CVDHeavy-duty steel turning
TN620K20–K30CVDCast iron & interrupted cuts

Chipbreaker Profile

A3 Chipbreaker Profile: The A3 geometry features a precision-ground chipbreaker groove optimized for boring operations. It produces tightly curled chips that evacuate safely from the cutting zone, reducing heat buildup and improving surface integrity. The sharp cutting edge and positive rake design minimize cutting forces, making it ideal for finishing to medium machining of non-ferrous materials.

  • Chipbreaker Code: A3
  • Recommended Feed Range: 0.05–0.30 mm/rev
  • Depth of Cut: 0.10–2.00 mm
  • Chip Control: Excellent for continuous and light interrupted cuts

Recommended Applications & Workpiece Materials

  • Primary Operations: Boring, Copying, External Turning
  • Workpiece Materials: non-ferrous metals, cast iron, titanium alloys, aluminium, copper, plastics, wood, ceramics
  • Industry Sectors: Aerospace, automotive, medical devices, general precision engineering, electronics
  • Process Types: Finish turning, semi-finish turning, facing, boring, chamfering, copying

Application Map by Operation

OperationSuitabilityNotes
Boring✓ RecommendedExcellent – precise diameter control and surface finish
Copying✓ RecommendedGood – contour following with consistent chip formation
External Turning✓ RecommendedExcellent – primary application for finish to medium cuts

Recommended Cutting Conditions

ParameterRangeOptimal
Cutting Speed (Vc)150–400 m/min250 m/min
Feed Rate (f)0.05–0.30 mm/rev0.15 mm/rev
Depth of Cut (ap)0.10–2.00 mm0.50 mm
CoolantWet or DryWet (flood) for aluminium

Operating Guidelines

  • Workpiece Security: Ensure rigid clamping and minimal overhang to prevent chatter during finishing passes.
  • Toolholder Selection: Use precision toolholders with run-out ≤ 0.01 mm for best surface finish.
  • Coolant Recommendation: Water-soluble coolant at 6–8% concentration is recommended for aluminium and titanium to prevent built-up edge.
  • Edge Preparation: The insert is supplied with a sharp, honed edge (ER) ready for immediate use; no additional honing required.
  • Storage: Store in original packaging away from moisture and corrosive atmospheres to preserve edge integrity.
  • Inspection: Visually inspect each edge under magnification before use; discard if micro-chipping exceeds 0.05 mm.

Toolholder Compatibility

This 55 degree diamond insert is compatible with standard ISO toolholders designed for DNGG inserts. Ensure the toolholder pocket matches the insert thickness (3/16") and hand (Left-Hand).

  • Compatible Holder Styles: DNGG turning holders, boring bars, facing tools
  • Clamping Systems: Lever-lock, pin-lock, and screw-clamp (depending on holder design)
  • Insert Hand: Left-Hand – verify holder pocket orientation before installation
  • Shim Requirements: Use original Kyocera shims of matching thickness for optimal seat contact

Packaging & Ordering Information

  • Standard Pack Quantity: 10 inserts per sealed plastic container
  • Packaging Type: Anti-static blister pack with foam insert protection
  • Label Information: Each pack includes ISO designation, grade, batch number, and barcode
  • Minimum Order: 1 pack (10 inserts)
  • MPN for Ordering: TWE04459
  • Unit Price: $13.05 per insert (bulk discounts available)

Catalog Meta Data

Catalog Meta Data
ManufacturerKyocera Precision Tools, Japan
Product SeriesISO Standard Indexable Inserts
Country of OriginJapan
WarrantyFull manufacturer warranty against material and workmanship defects
CertificationsISO 9001, ISO 14001
Weight per Insert0.136 kg
