Kyocera PNMG1106XNEN-GM CA420M TMB05200 - General Turning
For your absolute peace of mind, all transactions are processed through and secured by PayPal. Your purchase is fully covered by PayPal Buyer Protection, ensuring secure data encryption and trusted dispute resolution.
安心の決済保護：すべてのお手続きはPayPalを介して安全に暗号化され、バイヤープロテクション（購入者保護）が適用されます。
- Stock: In Stock
- Model: CA420M
- Weight: 0.10kg
- Manufactured: In Japan
- Ships: Worldwide
- Item Code: TMB05200
Flat $50 USD Shipping worldwide via DHL Express. Maximize your savings by ordering in bulk packs!
International Shipping Note
Please note that any local customs duties, taxes, or import fees are not included in the checkout price and must be borne by the customer.
How it works: Once your package arrives at your country's customs office, DHL will contact you directly via email, SMS, or phone to guide you through the local clearance and payment process.
DHL secure global delivery. Tracked from our door to yours. Kyotow.com Secured
Product Overview

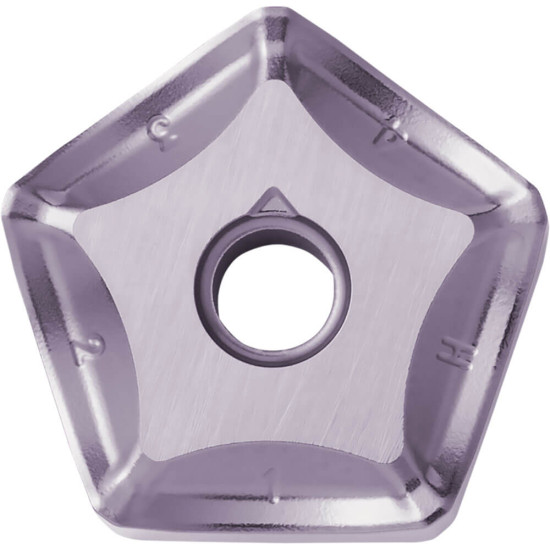

The PNMG1106XNEN-GM grade CA420M (MPN: TMB05200) is a precision-engineered indexable insert manufactured by Kyocera in Japan. Designed for Heavy continuous to interrupted cuts, this insert delivers Ra 1.6-6.3 µm with optimized chip control and extended tool life. The GM - General Medium (XNEN) geometry ensures reliable performance across Carbon steel, Alloy steel applications.
ISO Designation Breakdown
| Position | Code | Meaning |
|---|---|---|
| 1st Letter | P | Insert Shape: Pentagon (108° included angle) |
| 2nd Letter | N | Relief Angle: Negative |
| 3rd Letter | M | Tolerance Class: M (dimensional precision) |
| 4th Letter | G | Hole/Chipbreaker: G (clamping and chip control) |
| Size | 11 | Inscribed Circle: 11.0 mm |
| Thickness | 06 | Insert Thickness: 6.35 mm |
| Nose Radius | XN | Corner Radius: 0.4 mm |
Engineering Dimensions & Geometry
| Parameter | Value | Tolerance |
|---|---|---|
| Inscribed Circle (IC) | 11.0 mm | ±0.025 mm |
| Insert Thickness (S) | 6.35 mm | ±0.13 mm |
| Corner Radius (rε) | 0.4 mm | ±0.05 mm |
| Mounting Hole (d1) | 5.2 mm | +0.08/-0.00 mm |
| Corner Angle | 108° | ±0.5° |
Grade Details - Key Grade Characteristics
| Property | Specification |
|---|---|
| Grade Type | Cermet (TiCN-based) |
| Substrate | TiCN-Ni/Co |
| Coating | TiN PVD over Cermet substrate |
| Color Code | Silver/Grey |
| Hardness | HRA 92.5 |
| Transverse Rupture Strength | 1,800 MPa |
- Exceptional surface finish quality
- High hardness and wear resistance
- Low coefficient of friction
- Minimal built-up edge formation
Grade Comparison Matrix
| Grade | Type | Best For | Speed Range |
|---|---|---|---|
| CA420M | Cermet (TiCN-based) | Steel Finishing, Stainless Steel, High-Speed Machining | 120-260 m/min |
| CA4515 | CVD Coated Carbide | General purpose steel, stainless, cast iron | 120-350 m/min |
| CA420M | Cermet | High-speed finishing, mirror surfaces | 200-450 m/min |
CA420M Advantage: Premium finishing grade delivering mirror-finish surfaces at high cutting speeds. Ideal for precision components.
Chipbreaker Profile
| Parameter | Value |
|---|---|
| Chipbreaker Designation | GM - General Medium (XNEN) |
| Groove Geometry | Double-sided medium groove |
| Land Width (bγ) | 0.18 mm |
| Rake Angle (γ) | 7° positive |
| Groove Depth | Medium 0.28 mm |
| Chip Control | Versatile chip control for medium cutting |
| Optimal Feed Range | Medium machining of steel and cast iron |
Recommended Applications & Workpiece Materials
| Operation Type | Workpiece Material | Cutting Mode |
|---|---|---|
| Heavy-duty turning | Carbon steel | Heavy continuous to interrupted cuts |
| Large diameter facing | Alloy steel | Heavy continuous to interrupted cuts |
| Roll machining | Cast steel | Heavy continuous to interrupted cuts |
| Shaft turning | Forged steel | Heavy continuous to interrupted cuts |
Application Map by Operation
| Operation | Feed (mm/rev) | Depth (mm) | Priority |
|---|---|---|---|
| Finishing | 0.05-0.15 | 0.1-0.5 | ★★★☆☆ |
| Semi-Finishing | 0.10-0.25 | 0.3-1.5 | ★★★★☆ |
| Medium Machining | 0.15-0.35 | 0.5-3.0 | ★★★★☆ |
| Roughing | 0.20-0.60 | 1.0-6.0 | ★★☆☆☆ |
| Interrupted Cutting | 0.15-0.40 | 1.0-4.0 | ★☆☆☆☆ |
Recommended Cutting Conditions
| Workpiece Material | Cutting Speed Vc (m/min) | Feed f (mm/rev) | Depth ap (mm) |
|---|---|---|---|
| Carbon & Alloy Steel | 120-260 | 0.12-0.40 | 0.50-4.00 |
| Stainless Steel | 80-160 | 0.12-0.40 | 0.50-4.00 |
| Cast Iron | 70-140 | 0.12-0.40 | 0.50-4.00 |
Note: Values are starting recommendations. Adjust based on machine rigidity, workpiece condition, and coolant application.
Operating Guidelines
- Speed Selection: Start at lower end of Vc range and increase gradually while monitoring tool wear and surface finish.
- Feed Rate: Use minimum feed for finishing; increase for roughing while maintaining chip thickness below 0.3 mm for optimal chip control.
- Depth of Cut: For finishing, keep ap below 0.5 mm. For roughing, ensure ap exceeds nose radius by at least 3× to avoid notch wear.
- Coolant: Flood coolant recommended for steel and stainless steel. For cast iron, dry machining or minimal mist is preferred.
- Tool Overhang: Minimize overhang to reduce vibration. Use shortest possible toolholder for the application.
- Insert Seat: Ensure holder seat is clean and free of chips before clamping. Torque clamping screw to 3.5-4.5 N·m.
- Edge Preparation: This insert features a 0.18 mm honed land. Do not re-sharpen or alter edge geometry.
Toolholder Compatibility
| Holder Type | Compatible Series | Approach Angle |
|---|---|---|
| Negative (0° clearance) toolholders with 80° or 35° approach angle | PCLNR/L, PCKNR/L (Pentagon negative holders) | Per ISO standard for P-inserts |
Holder Selection Tips: Choose a holder with sufficient chip clearance for the insert thickness (6.35 mm). For PNMG1106XNEN-GM, ensure the holder clamping mechanism matches the insert hole diameter (5.2 mm).
Packaging & Ordering Information
| Item | Details |
|---|---|
| MPN (Manufacturer Part Number) | TMB05200 |
| Standard Packaging | 10 inserts per sealed plastic box (anti-corrosion packaging) |
| Minimum Order | 1 box (10 inserts) |
| Bulk Pricing | Available for quantities ≥50 boxes. Contact sales for quotation. |
| Warranty | Full manufacturer warranty against material and manufacturing defects |
Catalog Meta Data
| Attribute | Value |
|---|---|
| Product ID | 4098 |
| Manufacturer | Kyocera |
| Country of Origin | Japan |
| ISO Standard | ISO 1832:2017 |
| Grade Classification | CA420M |
| Coating Technology | TiN PVD over Cermet substrate |
| Application Class | Heavy continuous to interrupted cuts |
| Price per Insert | $15.70 USD |
✓ Genuine Kyocera Product
| Manufacturer | Kyocera Corporation |
|---|---|
| Status | Verified Original Product |
